UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

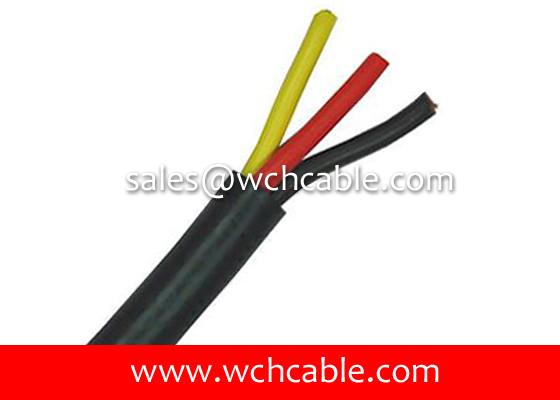

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

Brand Name : WCH Cable

Model Number : UL21118

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meter per Month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Feature : Data Transmission

Style Number : UL21118

Use : Data Cable

Jacket Type : FRPE, FR-PE

Rated Voltage : 30V

Advantage : Dongguan Made

Contact Now

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE

Rated Temperature: 80C

Rated Voltage: 30V

Flame Retardant Grade: VW-1, FT-1, FT-2

Executed Standard: Appliance Wiring Material UL 758.

Application: Internal wiring of appliances and external interconnection of electronic equipment.

Parameters of Dongguan Factory Made LSZH Data Cable UL21118:

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL21118 2C 30 7/0.100 0.23 0.80 >=65 0.43 3.00 381.00
28 7/0.127 0.23 0.90 >=65 0.43 3.20 239.00
26 7/0.16 0.23 1.00 >=65 0.43 3.40 150.00
24 11/0.16 0.23 1.10 >=65 0.43 3.60 94.20
22 17/0.16 0.23 1.30 >=65 0.43 4.00 59.40
20 21/0.178 0.23 1.50 >=65 0.43 4.40 36.70
18 34/0.178 0.23 1.80 >=65 0.43 5.00 23.20
16 26/0.25 0.23 2.10 >=65 0.43 5.60 14.60
UL21118 3C 30 7/0.100 0.23 0.80 >=65 0.43 3.20 381.00
28 7/0.127 0.23 0.90 >=65 0.43 3.30 239.00
26 7/0.16 0.23 1.00 >=65 0.43 3.60 150.00
24 11/0.16 0.23 1.10 >=65 0.43 3.80 94.20
22 17/0.16 0.23 1.30 >=65 0.43 4.20 59.40
20 21/0.178 0.23 1.50 >=65 0.43 4.60 36.70
18 34/0.178 0.23 1.80 >=65 0.43 5.30 23.20
UL21118 4C 30 7/0.100 0.23 0.80 >=65 0.43 4.60 381.00
28 7/0.127 0.23 0.90 >=65 0.43 4.90 239.00
26 7/0.16 0.23 1.00 >=65 0.43 5.10 150.00
24 11/0.16 0.23 1.10 >=65 0.43 5.30 94.20
22 17/0.16 0.23 1.30 >=65 0.43 5.80 59.40
20 21/0.178 0.23 1.50 >=65 0.43 6.30 36.70
UL21118 5C 30 7/0.100 0.23 0.80 >=65 0.43 4.80 381.00
28 7/0.127 0.23 0.90 >=65 0.43 5.10 239.00
26 7/0.16 0.23 1.00 >=65 0.43 5.40 150.00
24 11/0.16 0.23 1.10 >=65 0.43 5.60 94.20
22 17/0.16 0.23 1.30 >=65 0.43 6.20 59.40
UL21118 6C 30 7/0.100 0.23 0.80 >=65 0.43 5.10 381.00
28 7/0.127 0.23 0.90 >=65 0.43 5.40 239.00
26 7/0.16 0.23 1.00 >=65 0.43 5.70 150.00
24 11/0.16 0.23 1.10 >=65 0.43 6.00 94.20

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed

UL21118 Dongguan Factory Made LSZH Data Cable FR-PE Jacketed
