UL TPU Cable, AWM Style UL21211 22AWG 14C FT2 80°C 300V, PVC / TPU

Product Categories

WCH Cable Industrial Co., Ltd.

Contact Now

Name: UL TPU Cable AWM Style UL21211 22AWG 14C FT2 80C 300V PVC TPU
Brand: WCH Cable
Price: 0.125 USD

Brand Name : WCH Cable

Model Number : UL21211

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD0.125 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000,000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Style Number : UL21211

Conductor Material : Highly pure copper wire

Rated Temperature : 80°C

Insulation Material : Polyvinyl Chloride PVC

Rated Voltage : 300V

Sheath Material : Thermoplastic polyurethane TPU

Alternative Style : UL20936

Contact Now

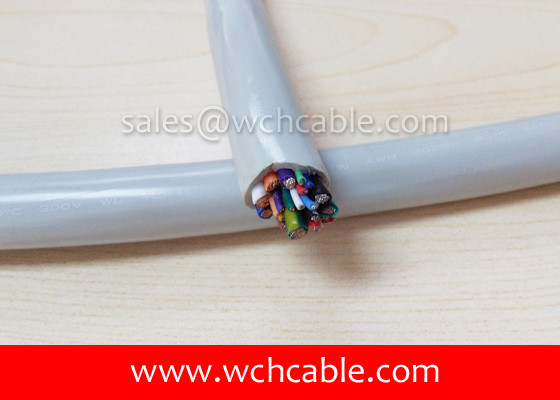

UL TPU Cable, AWM Style UL21211 22AWG 14C FT2 80°C 300V, PVC / TPU

Conductor size: 22AWG

Wire assembly: 14 cores.

Insulation color: Red, green, blue, black, yellow, grey, white, etc.

Insulation material: PVC

Shield: no shield.

Sheath color: Grey.

Sheath material: TPU.

Sheath thickness: 0.23mm

Flammability: FT2.

Rated temperature: 80°C

Rated voltage: 300V

Conductor resistance: 60.7Ω/km

Insulation resistance: 10mΩ/km

Recommended Use: power control wiring.

Alternative Style: UL20936

Remark: color of wires or sheath can be changed according to customer's requirement.

UL TPU Cable, AWM Style UL21211 22AWG 14C FT2 80°C 300V, PVC / TPU

UL TPU Cable, AWM Style UL21211 22AWG 14C FT2 80°C 300V, PVC / TPU Images
